Onten 8 In 1 Multifunction HUB Converter Dock Station - OT-95113

Onten 8 In 1 Multifunction HUB Converter Dock Station - OT-95113

Regular price $89.95 CAD
Regular price Sale price $89.95 CAD
Sale Sold out

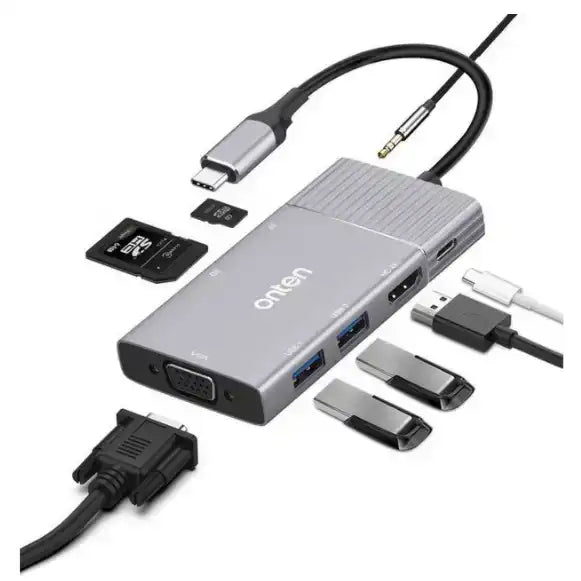

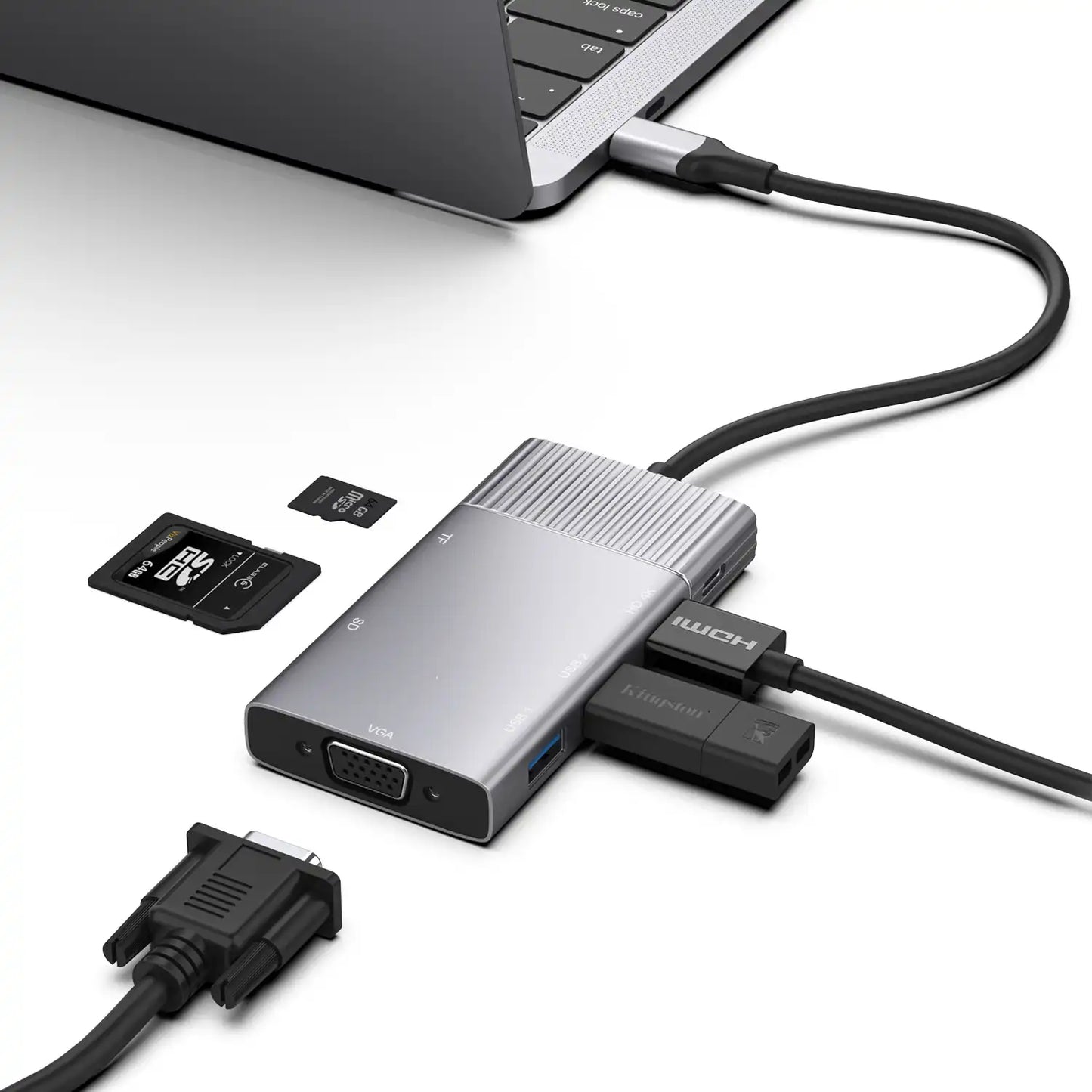

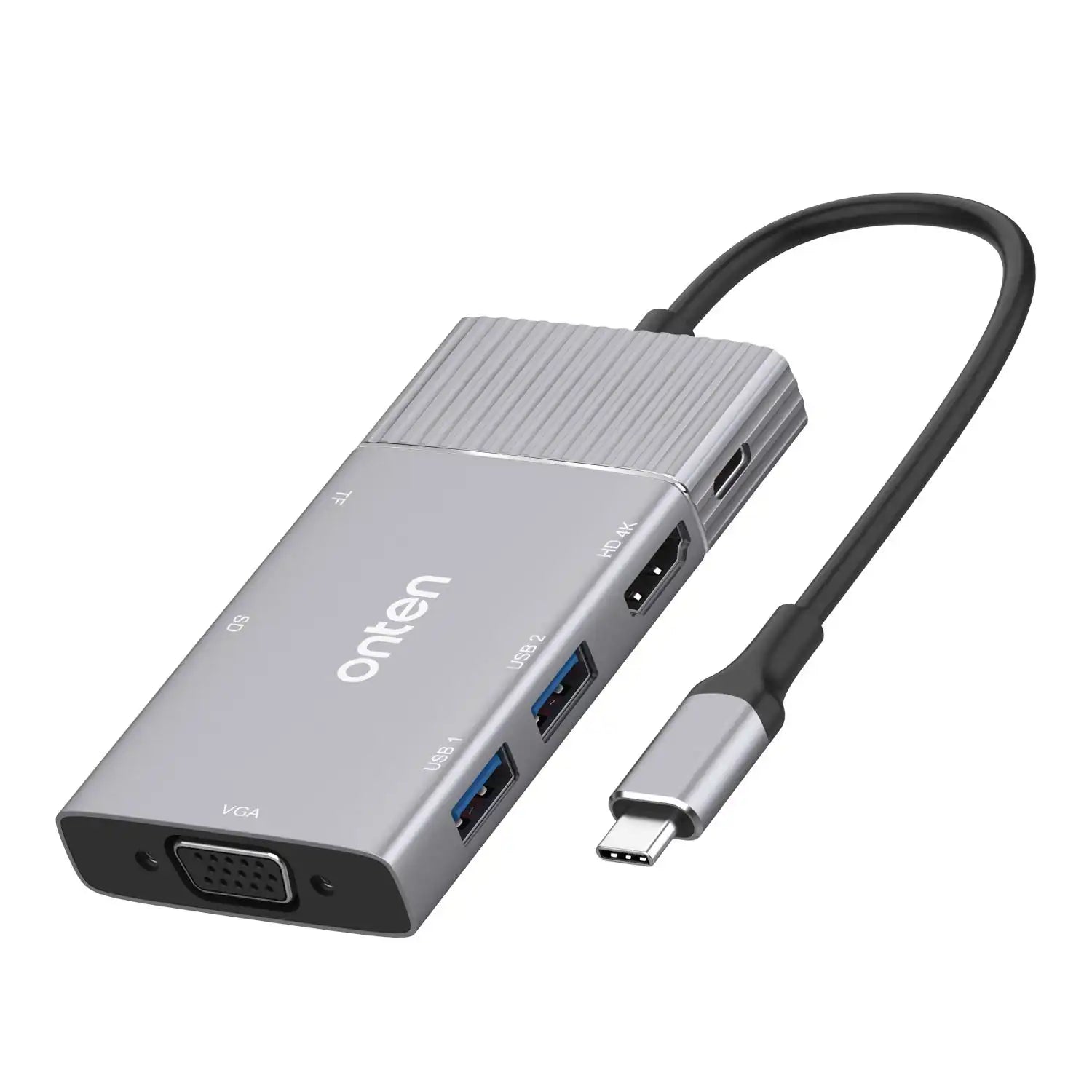

Onten 8 In 1 Multifunction HUB Converter Dock Station (Card Reader) USB 3.0 x2 + SD / Micro-SD + HDMI / VGA + 3.5mm Jack + Type-C / USB-C (PD 3.0)

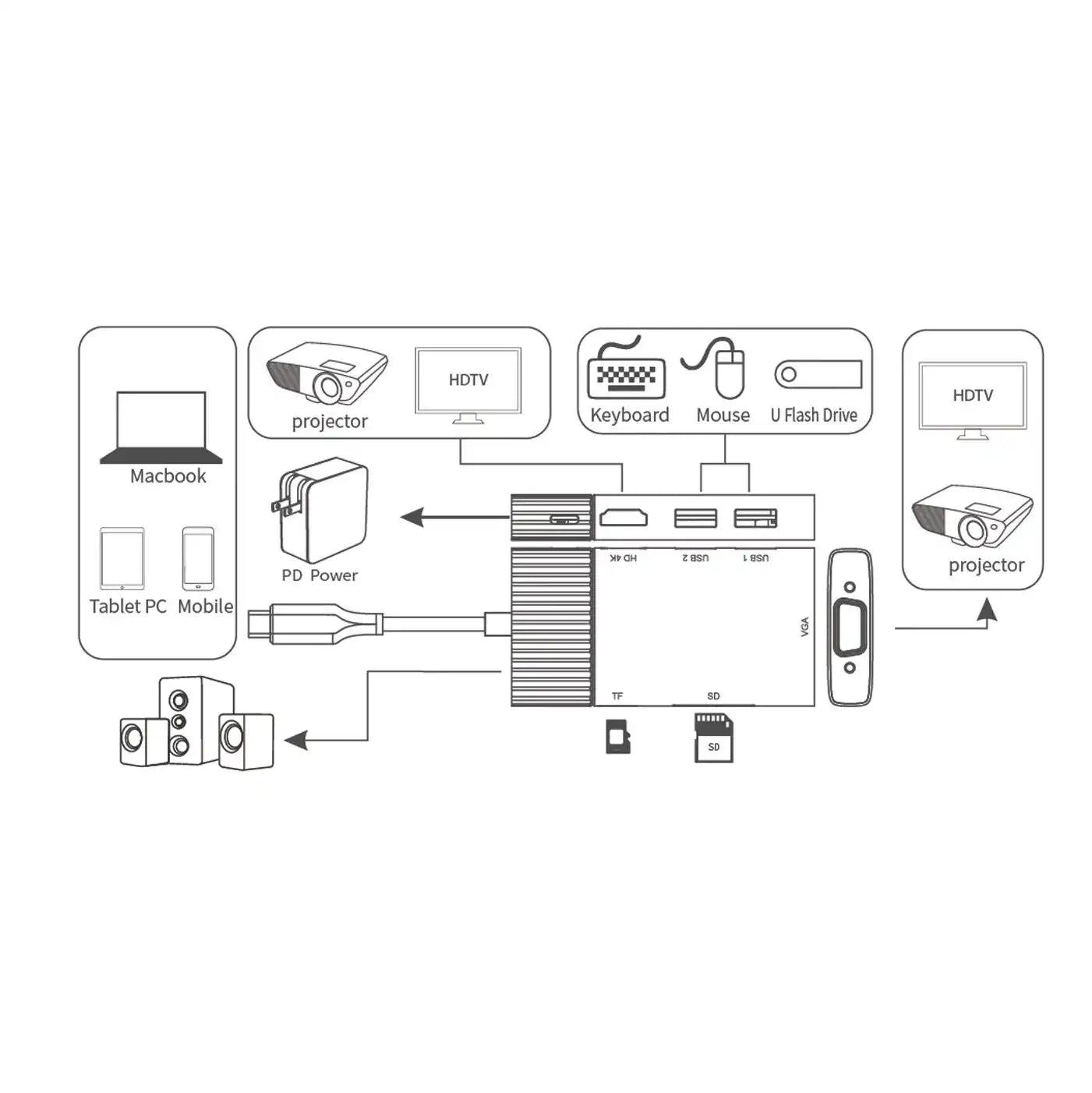

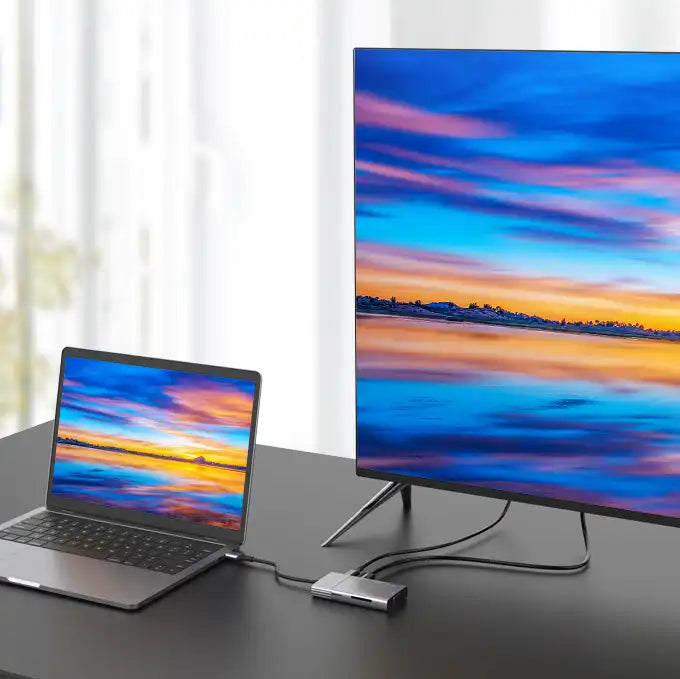

The 8 in 1 USB-C docking station is designed for extra connectivity demands. With this docking , you can extend the connection of a laptop to more USB peripherals, Ethernet network, the HDMI or VGA displays through  USB C interface. With the HDMI and VGA ports, you can mirror your primary screen, or extend the windows desktop allowing visibility of more application at the same time. This docking station is the most versatile accessory that make your office space more convenient.



Features:

  • HDMI interface can output video resolution up to 4Kx2K UHD
  • VGA interface can output video resolution up to 2K full HD
  • Type-C Multi functional Dock can expand laptop to USB peripheral devices and display devices
  • Type-C female can be used for PD power supply, TF/SD card slot can read and write SD/TF card
  • Enjoy upto 1000 Mbps blazing fast data transfer speeds on your device through upto 1000 Mbps
  • With the presence of micro SD and SD card slots, transfer data seamlessly from the memory cards to your laptop / USB device

Ÿ   USB 3.0 downstream port x2 USB 3.0 5Gbps data transfer rates and backwards compatible with USB 2.0 ports.

Ÿ   HDMI resolution up to: 3840X2160P@30Hz

Ÿ   VGA resolution up to  1920x1080P@60Hz

Ÿ   Support for both SST( Single Stream Transport) and MST( Multi-Stream Transport)

Ÿ   SD and Micro SD slot support SD/ Micro SD memory card.

Ÿ   USB-C X1 for PD charging.

Ÿ   3.5MM audio port for audio output function.

Ÿ   Supports Bus-powered and Self-powered ( via USB-C port)

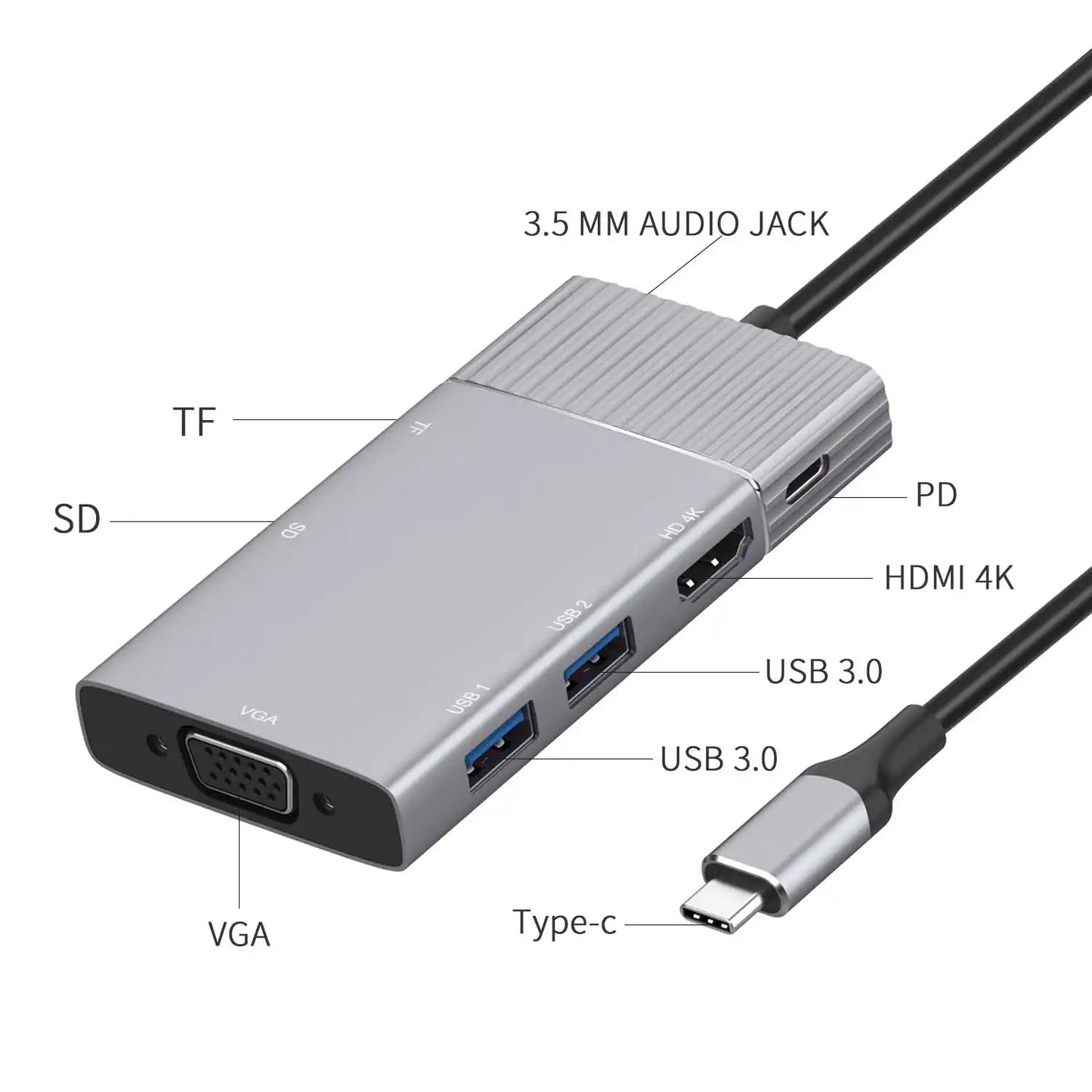

Specification

Host interface     USB-C X 1

Connector

Video output      HDMI 19 pin Female ConnectorX1

Video output      VGA 15 Pin Female Connector X 1

USB Port              USB A Female X2

HDMI resolution 3840X2160P@30HzHDMI 1.4 compatible

VGA resolution   1920x1080p@60Hz

3.5mm Audio Jack            Support audio output

USB 3.0 Port        5Gbps

SD slot   Support SD memory

Micro SD slot      Support Micro SD memory

USB-C    PD 2.0 60W

Support colors    32 Bits

Power consumption         Operating Power: 5V/0.5A

Suspend Mode Power: 5V/0.2A

Main Material     ABS and Aluminum

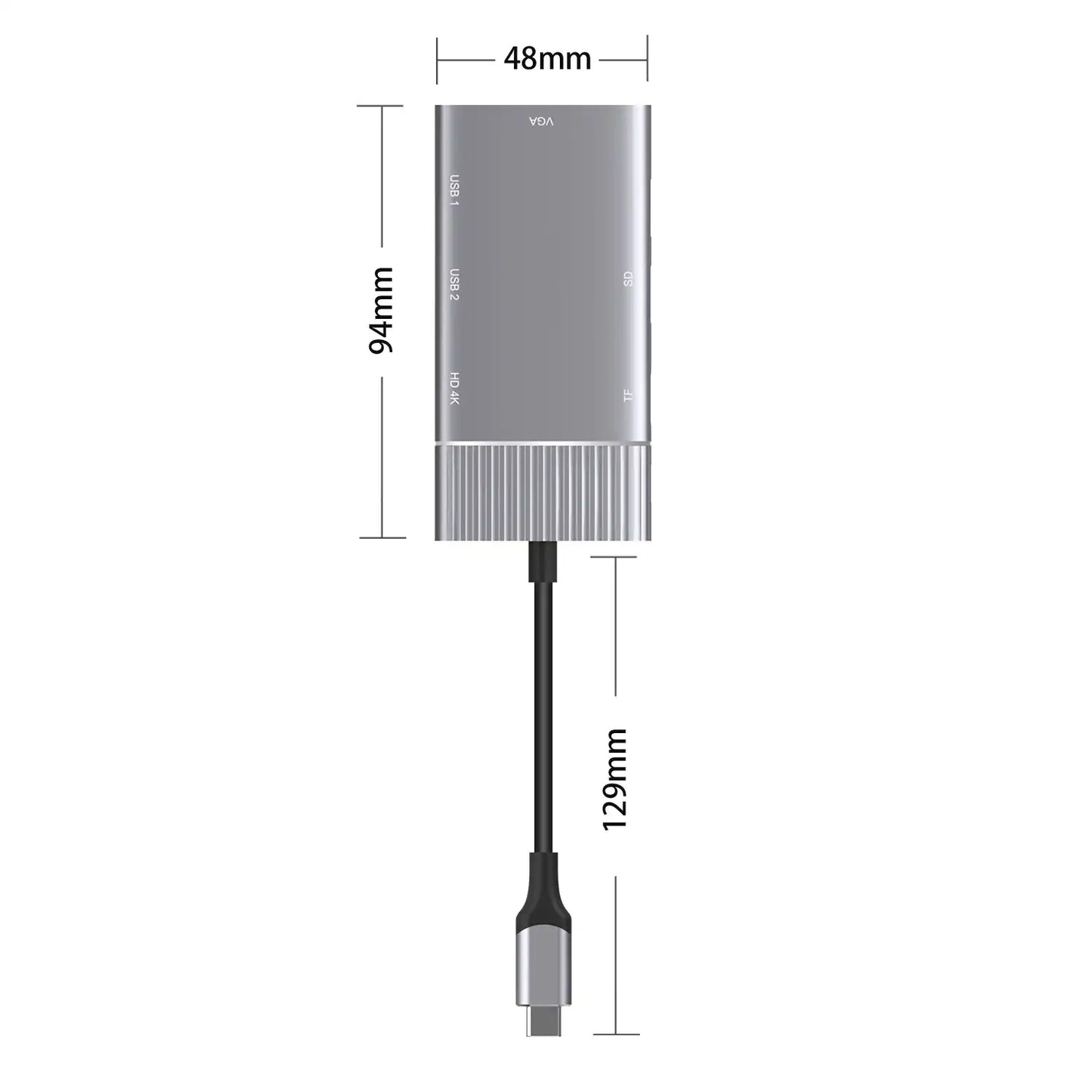

Product Size        115(L)X60(W)X15(H)mm

Cable Length       140mm

Product body Colors         Space gray/Black

Environmental

Operating Temperature   0 to +45

Operating Humidity         10%0 to 85 % RH

Storage Temperature       -10 to +55

Storage Humidity             5% to 90 % RH

Electrical         Self powered

Accessory        User guide
